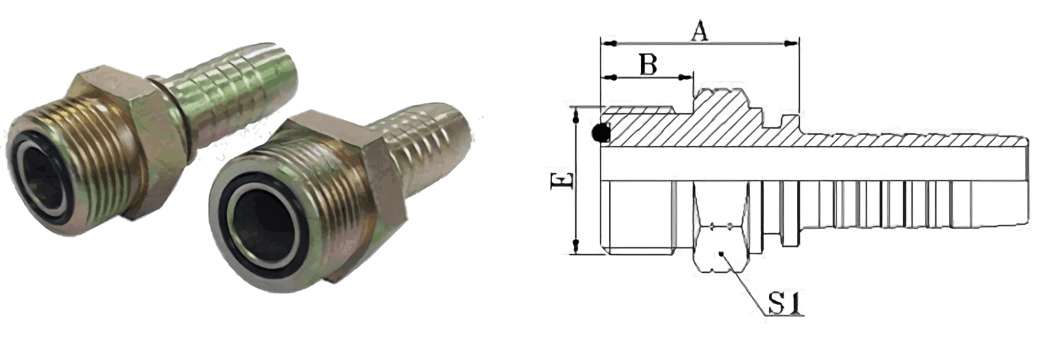

| PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | ||||
| 14211-04-04 | 9/16" × 18 | 6 | 04 | 0011 | 22.3 | 9.8 | 17 | |
| 14211-06-04 | 11/16" × 16 | 6 | 04 | 0012 | 24.2 | 11.2 | 19 | |
| 14211-06-06 | 11/16" × 16 | 10 | 06 | 0012 | 24.2 | 11.2 | 19 | |
| 14211-08-06 | 13/16" × 16 | 10 | 06 | 0014 | 26.8 | 12.8 | 22 | |
| 14211-08-08 | 13/16" × 16 | 12 | 08 | 0014 | 27.3 | 12.8 | 22 | |
| 14211-08-10 | 13/16" × 16 | 16 | 10 | 0014 | 28.5 | 12.8 | 22 | |
| 14211-10-08 | 1" × 14 | 12 | 08 | 0016 | 31.5 | 15.5 | 27 | |
| 14211-10-10 | 1" × 14 | 16 | 10 | 0016 | 33 | 15.5 | 27 | |
| 14211-12-08 | 1.3/16" × 12 | 12 | 08 | 0018 | 36.5 | 17 | 32 | |
| 14211-12-10 | 1.3/16" × 12 | 16 | 10 | 0018 | 36 | 17 | 32 | |
| 14211-12-12 | 1.3/16" × 12 | 20 | 12 | 0018 | 36.5 | 17 | 32 | |
| 14211-16-12 | 1.7/16" × 12 | 20 | 12 | 0021 | 37 | 17.5 | 38 | |
| 14211-16-16 | 1.7/16" × 12 | 25 | 16 | 0021 | 39.5 | 17.5 | 38 | |
| 14211-20-20 | 1.11/16" × 12 | 32 | 20 | 0025 | 41.5 | 17.5 | 46 | |
| 14211-24-24 | 2" × 12 | 40 | 24 | 0029 | 44.5 | 17.5 | 55 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 14212-XX-XX. |
||||||||
