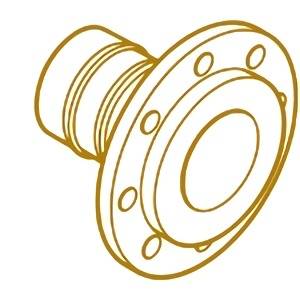

Loose flange
shade
Flanged hose fittings are fittings that have flange fixed on. We can know the product consists of a fitting and a flange. The material of the fitting is often SS 304 or SS 316. And the flange is made of SS 304. There is a serrated profile in the hose tail of the flange coupling. We also have different types of elbow flange heads.
And flanged hose fittings can be divided into six different types. You can see the following pictures to have a better understanding.

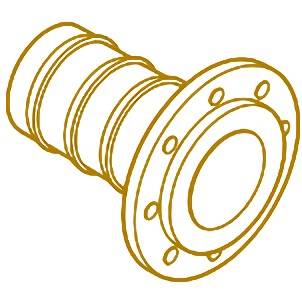

Loose flange

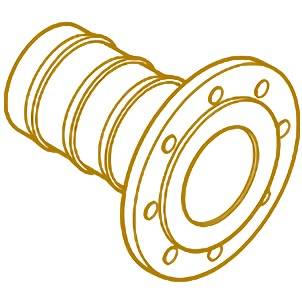

Fixed flange
Loose flange

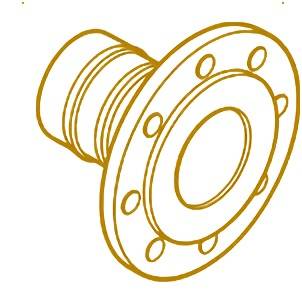

Fixed flange
Loose flange

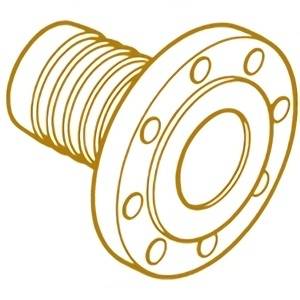

Fixed flange
Nominal specifications:
| Nominal Size | Fitting Length | Flared Diameter | Record Bolt Tightening Torques |
Weight Fitting |
||||
| in | mm | in | mm | ASA150 mm |
PN10/16 mm |
ft./lbs. | mm | kg |
| 1/2 | 15 | 1-5/8 | 42 | 32.0 | 32.0 | 8 | 10.79 | 0.54 |
| 3/4 | 20 | 2-1/4 | 56 | 43.0 | 50.0 | 8 | 10.79 | 0.88 |
| 1 | 25 | 2-3/8 | 60 | 50.8 | 63.50 | 10 | 13.73 | 0.96 |
| 1 1/4 | 32 | 2-3/8 | 60 | 63.0 | 78.00 | 12 | 16.67 | 1.36 |
| 1 1/2 | 40 | 2-1/2 | 63 | 73.0 | 88.00 | 15 | 20.59 | 1.75 |
| 2 | 50 | 2-5/8 | 66 | 92.0 | 102.0 | 25 | 34.32 | 2.70 |
| 2 1/2 | 65 | 3-1/4 | 82 | 105.0 | 122.0 | 30 | 41.18 | 4.00 |
| 3 | 80 | 3-1/4 | 82 | 127.0 | 127.0 | 40 | 53.94 | 5.00 |
| 4 | 100 | 4-1/2 | 114 | 158.0 | 158.0 | 40 | 53.94 | 7.00 |
| 6 | 150 | 6 | 150 | 213.0 | 213.0 | 50 | 67.67 | 13.0 |

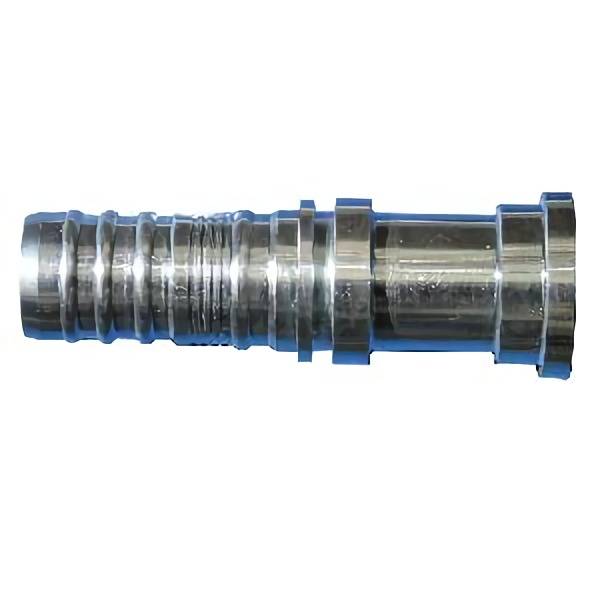

SAE flange hose fitting

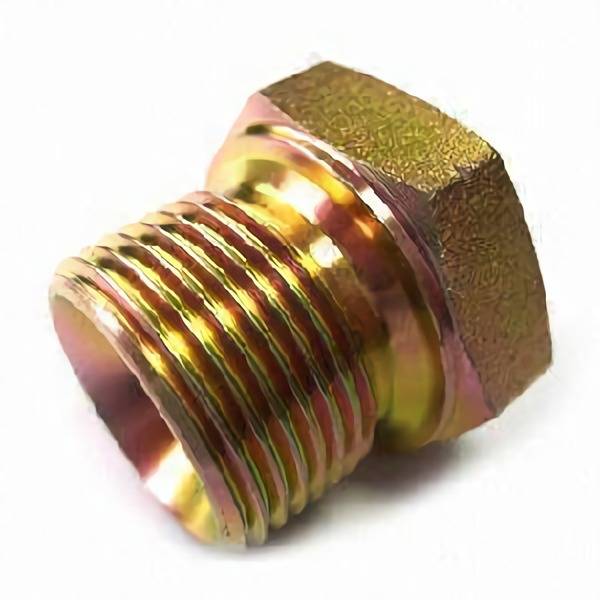

SAE flange hose fitting
flanged hose fitting

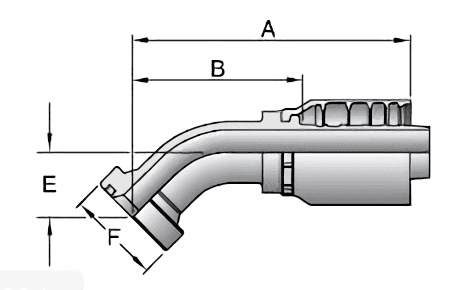

Flange Head - 45° Elbow
SAE flange hose fitting
| Flange | Hose ID | A | E | F | B | |||
| in | in | in | mm | in | mm | in | in | mm |
| 3/4 | 3/4 | 4.57 | 116,0 | 1.22 | 31,0 | 1-5/8 | 2.93 | 74,5 |
| 1 | 1 | 5.26 | 133,6 | 1.42 | 36,0 | 1-7/8 | 3.31 | 84,1 |
| 1-1/4 | 1 | 5.26 | 133,6 | 1.42 | 36,0 | 2-1/8 | 3.31 | 84,1 |
| 1-1/4 | 1-1/4 | 6.23 | 158,2 | 1.46 | 37,0 | 2-1/8 | 3.96 | 100,6 |
| 1-1/2 | 1-1/4 | 6.23 | 158,2 | 1.46 | 37,0 | 2-1/2 | 3.96 | 100,6 |

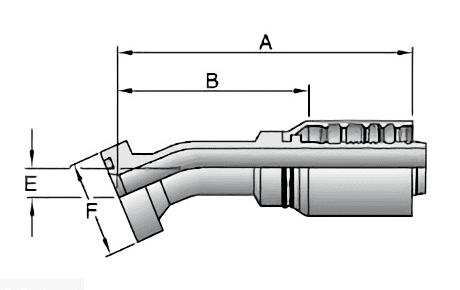

Flange Head - 22-1/2° Elbow
22-1/2° elbow flange head
| Flange | Hose ID | A | E | F | B | |||
| in | in | in | mm | in | mm | in | in | mm |
| 1 | 1 | 5.66 | 143,8 | 0.55 | 14,0 | 1-7/8 | 3.71 | 94,2 |
| 1-1/4 | 1-1/4 | 6.60 | 167,7 | 0.58 | 14,7 | 2-1/8 | 4.33 | 109,9 |
Flange Head - 60° Elbow
60° elbow flange head
| Flange | Hose ID | A | E | F | B | |||
| in | in | in | mm | in | mm | in | in | mm |
| 3/4 | 3/4 | 5.35 | 135,8 | 1.65 | 42,0 | 1-5/8 | 3.71 | 94,3 |
| 1 | 1 | 5.98 | 151,9 | 1.97 | 50,0 | 1-7/8 | 4.03 | 102,4 |
| 1-1/4 | 1-1/4 | 7.74 | 196,6 | 2.01 | 51,0 | 2-1/8 | 5.47 | 138,9 |
Flange Head - 90° Elbow
90° elbow flange head
| Flange | Hose ID | A | E | F | B | |||
| in | in | in | mm | in | mm | in | in | mm |
| 3/4 | 3/4 | 4.23 | 107,4 | 2.48 | 63,0 | 1-5/8 | 2.59 | 65,9 |
| 1 | 1 | 4.73 | 120,1 | 2.91 | 74,0 | 1-7/8 | 2.78 | 70,5 |
| 1-1/4 | 1 | 4.73 | 120,1 | 2.91 | 74,0 | 2-1/8 | 2.78 | 70,5 |
| 1-1/4 | 1-1/4 | 5.81 | 147,6 | 3.70 | 94,0 | 2-1/8 | 3.54 | 90,0 |
| 1-1/2 | 1-1/4 | 5.81 | 147,6 | 3.03 | 77,0 | 2-1/2 | 3.54 | 90,0 |
