26711D

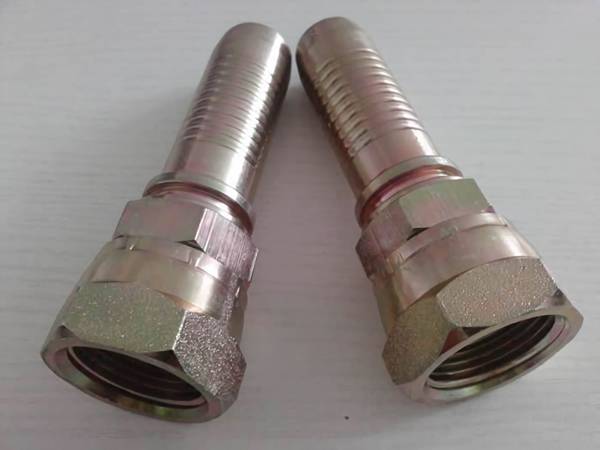

26711d-1
PART NO. HOSE BORE (DN) HOSE BORE (DASH) DIMENSIONS (C) DIMENSIONS (S2) DIMENSIONS (S1) E (THREAD E)
26711D-04-04 7/16" × 20 6 4 9 14 14
26711D-05-04 1/2" × 20 6 4 9.5 17 17
26711D-06-06 9/16" × 18 10 6 10.5 19 19
26711D-08-06 3/4" × 16 10 6 11 24 24
26711D-08-08 3/4" × 16 12 8 11 24 24
26711D-08-10 3/4" × 16 16 10 11 24 24
26711D-10-08 7/8" × 14 12 8 14 27 27
26711D-12-12 1.1/16" × 12 20 12 15 32 32
26711D-16-12 1.5/16" × 12 20 12 16 41 41
26711D-16-16 1.5/16" × 12 25 16 16 41 41
26711D-20-20 1.7/16" × 12 32 20 17 50 50
Note:
1. For use with braided hoses.
2. If use with sprial hoses, hose fitting series number is 26712D-xx-xx.
