87312

87312

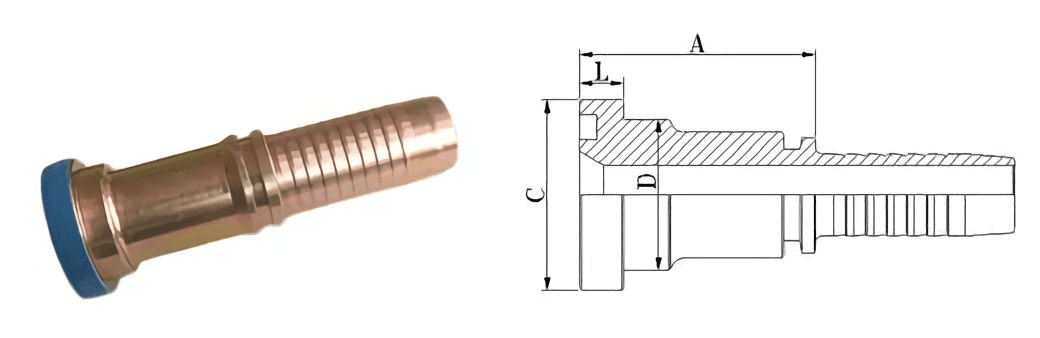

PART NO. FLANGE NO. HOSE BORE DIMENSIONS
DN DASH A C D L
87312-08-08 1/2" 12 08 45.5 30.2 24 6.73
87312-12-08 3/4" 12 08 47.5 38.1 31.7 6.73
87312-12-10 3/4" 16 10 49 38.1 31.7 6.73
87312-12-12 3/4" 20 12 48.5 38.1 31.7 6.73
87312-12-16 3/4" 25 16 49 38.1 31.7 6.73
87312-16-12 1" 20 12 51 44.4 38 8
87312-16-16 1" 25 16 48 44.4 38 8
87312-16-20 1" 32 20 53 44.4 38 8
87312-20-16 1.1/4" 25 16 57 50.8 43 8
87312-20-20 1.1/4" 32 20 56 50.8 43 8
87312-24-20 1.1/2" 32 20 68 60.3 50 8
87312-24-24 1.1/2" 40 24 74 60.3 50 8
87312-32-24 2" 40 24 70 71.4 62 9.53
87312-32-32 2" 50 32 70 71.4 62 9.53
87312-40-40 2.1/2" 64 40 76 84.1 74 9.53
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 87312-XX-XX.
