87392

87392

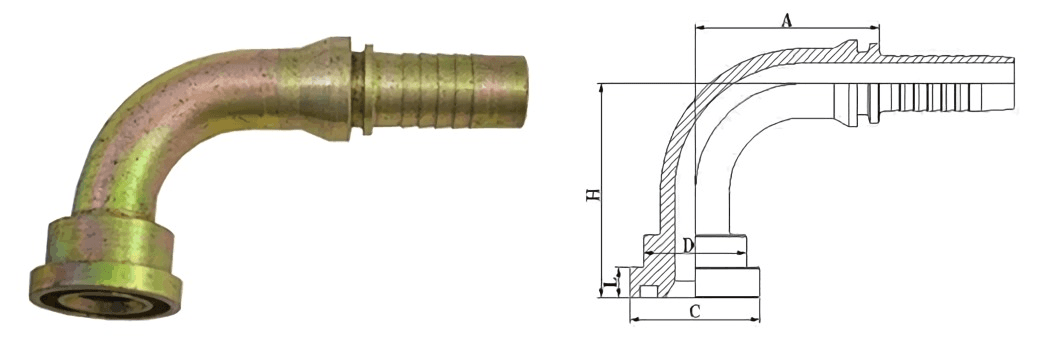

PART NO. FLANGE NO. HOSE BORE DIMENSIONS
DN DASH A C D H L
87392-08-08 1/2" 12 08 42.5 30.2 24 48 6.73
87392-12-08 3/4" 12 08 42.5 38.1 31.7 50 6.73
87392-12-10 3/4" 16 10 56 38.1 31.7 52.5 6.73
87392-12-12 3/4" 20 12 60.5 38.1 31.7 62.5 6.73
87392-12-16 3/4" 25 16 76.7 38.1 31.7 67.5 6.73
87392-16-12 1" 20 12 65.5 44.4 38 62 8
87392-16-16 1" 25 16 66 44.4 38 74 8
87392-16-20 1" 32 20 91.5 44.4 38 78.5 8
87392-20-16 1.1/4" 25 16 76.7 50.8 43 67.5 8
87392-20-20 1.1/4" 32 20 75 50.8 43 86 8
87392-20-24 1.1/4" 40 24 107 50.8 43 78.5 8
87392-24-20 1.1/2" 32 20 75 60.3 50 90 8
87392-24-24 1.1/2" 40 24 89 60.3 50 102 8
87392-32-24 2" 40 24 109.4 71.4 62 94 9.53
87392-32-32 2" 50 32 115.2 71.4 62 129.5 9.53
87392-40-40 2.1/2" 64 40 131.8 84.1 74.4 116.3 9.53
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 87392-XX-XX.
