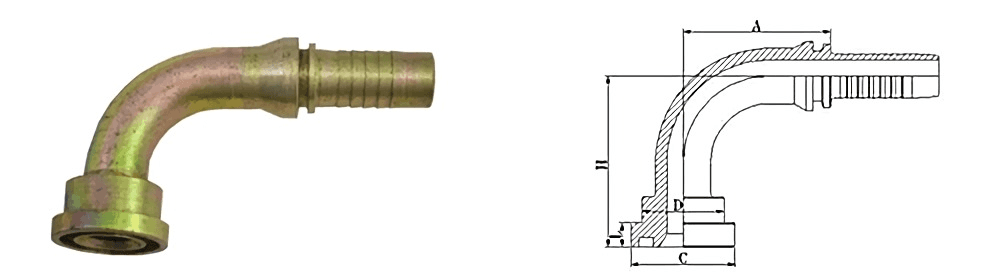

homeProductsAmerican FittingsSAE Flange87692

87692

87642
PART NO. FLANGE NO. HOSE BORE DIMENSIONS
DN DASH A C D H L
87692-08-08

1/2" 12 08 42.5 31.7 24 50 7.75
87692-12-10 3/4" 16 10 56 41.3 32 56.5 8.76
87692-12-12 3/4" 20 12 50.5 41.3 32 65.5 8.76
87692-16-12 1" 20 12 65.5 47.6 38 69 9.53
87692-16-16 1" 25 16 66 47.6 38 78 9.53
87692-16-20 1" 32 20 91.5 47.6 38 85.5 9.53
87692-20-16 1.1/4" 25 16 76.7 54 44 78.5 10.29
87692-20-20 1.1/4" 32 20 75 54 44 92 10.29
87692-24-20 1.1/2 32 20 91.5 63.5 51 94.5 12.57
87692-24-24 1.1/2 40 24 89 63.5 51 107 12.57
87692-32-24 2" 40 24 109.4 79.4 67 116 12.57
87692-32-32 2" 50 32 115.5 79.4 67 138.5 12.57
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 87692-XX-XX.
