88141

88141

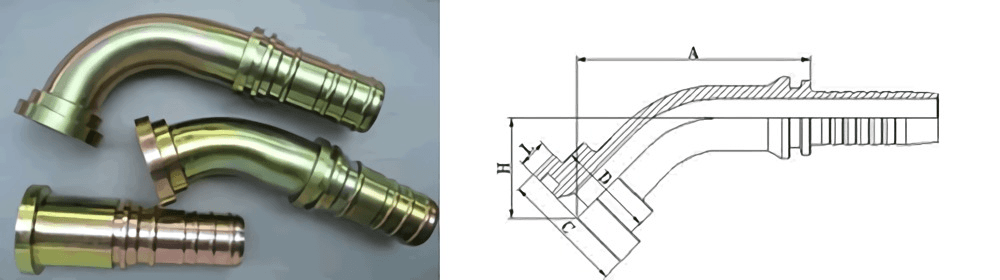

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C D H L
88141-10-08 5/8" 12 08 58.9 34.2 27.8 24 6.7
88141-10-10 5/8" 16 10 69.6 34.2 27.8 25.3 6.7
88141-10-12 5/8" 20 12 76.3 34.2 27.8 28.9 6.7
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 88142-XX-XX.
