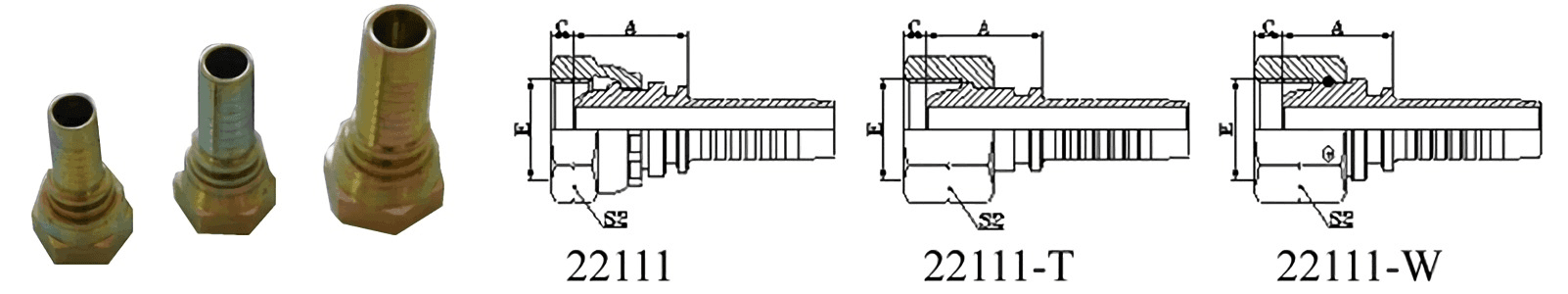

22111

22111.
PART NUMBER OD DN DASH A C S2
22111-02-04 G1/8"×28 6 04 19 2 14
22111-04-03 G1/4"×19 5 03 19 4 19
22111-04-04 G1/4"×19 6 04 20.5 4 19
22111-06-05 G3/8"×19 8 05 20 5 22
22111-06-06 G3/8"×19 10 06 22.5 5 22
22111-06-08 G3/8"×19 12 08 21 5 22
22111-08-06T G1/2"×14 10 06 22.5 6 27
22111-08-08 G1/2"×14 12 08 22.5 6 27
221111-08-10 G1/2"×14 16 10 24 6 27
22111-10-10 G5/8"×14 16 10 26 8 30
22111-10-12 G5/8"×14 20 12 25 8 30
22111-12-08T G3/4"×14 12 08 25 9.5 32
22111-12-10 G3/4"×14 16 10 26 9.5 32
22111-12-12 G3/4"×14 20 12 26 9.5 32
22111-16-12T G1"×11 20 12 26.5 11 41
22111-16-14 G1"×11 22 14 26.5 11 41
22111-16-16 G1"×11 25 16 28.5 11 41
22111-20-16 G1.1/4"×11 25 16 27.5 11 50
22111-20-20W G1.1/4"×11 32 20 31.5 10 50
22111-24-24W G1.1/2"×11 40 24 37 11.5 55
22111-32-32W G2"×11 50 32 34 15 70
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22212-XX-XX.
