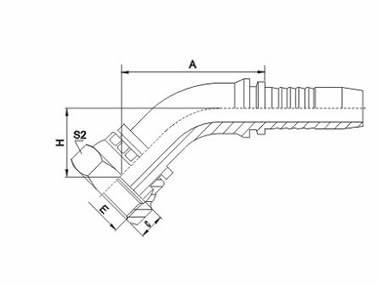

| PART NUMBER | OD | DN | DASH | A | C | H | S2 | |
| 22241-04-04 | G1/4"× 19 | 6 | 04 | 40.9 | 8 | 18.8 | 19 | |
| 22241-06-06 | G3/8"× 19 | 10 | 06 | 45.3 | 9 | 21 | 22 | |
| 22241-08-08 | G1/2"× 14 | 12 | 08 | 58.9 | 10.5 | 24 | 27 | |
| 22241-12-12 | G3/4"× 14 | 20 | 12 | 77.4 | 13.5 | 30 | 32 | |
| 22241-16-16 | G1"× 11 | 25 | 16 | 82.7 | 15.5 | 30 | 32 | |
| 22241-20-20 | G1.1/4"× 11 | 32 | 20 | 97.3 | 15.5 | 36.6 | 50 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22242-XX-XX. |
||||||||
