homeProductsBritish FittingsBSP 60°Cone Seal Fitting22611D-SM

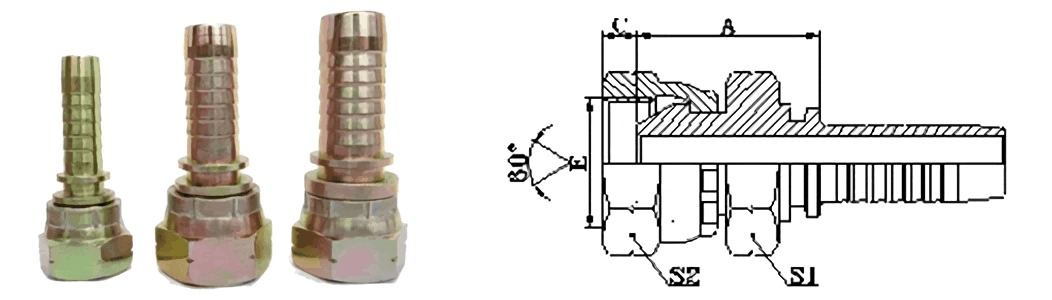

22611D-SM

22611d-sm
PART NUMBER OD DN DASH A C S1 S2
22611D-04-04SM G1/4"× 19 6 04 23.5 5.5 12 19
22611D-06-06SM G3/8"× 19 10 06 24.5 6.3 17 22
22611D-08-08SM G1/2"× 14 12 08 29 7.5 22 27
22611D-10-08SM G5/8"× 14 12 08 29 9.5 22 30
22611D-12-08SM G3/4"× 14 12 08 31.5 10.9 27 32
22611D-12-12SM G3/4"× 14 20 12 33.5 10.9 27 32
22611D-16-16SM G1"× 11 25 16 35.5 11.7 32 41
22611D-20-20SM G1.1/4"× 11 32 20 42 11 41 50

NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22612D-XX-XXSM.
