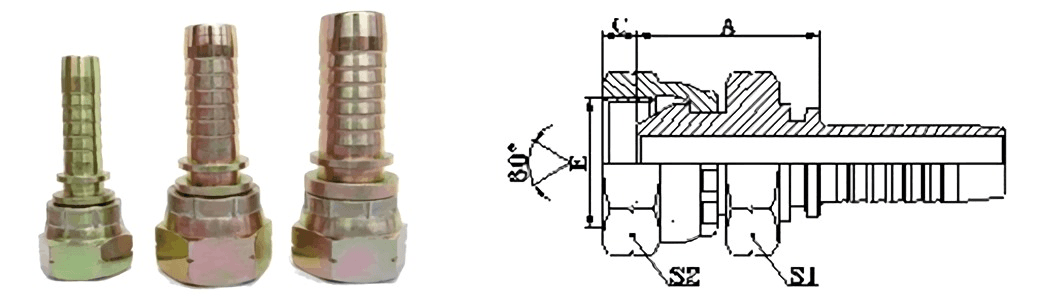

| PART NUMBER | OD | DN | DASH | A | C | S1 | S2 |
| 22611D-04-04 | G1/4"× 19 | 6 | 04 | 24.5 | 5.5 | 19 | 19 |
| 22611D-06-06 | G3/8"× 19 | 10 | 06 | 27 | 6.3 | 22 | 22 |
| 22611D-08-08 | G1/2"× 14 | 12 | 08 | 30.5 | 7.5 | 27 | 27 |
| 22611D-10-08 | G5/8"× 14 | 12 | 08 | 31 | 9.5 | 30 | 30 |
| 22611D-12-08 | G3/4"× 14 | 12 | 08 | 31.5 | 10.9 | 32 | 32 |
| 22611D-12-12 | G3/4"× 14 | 20 | 12 | 34.5 | 10.9 | 32 | 32 |
| 22611D-16-16 | G1"× 11 | 25 | 16 | 38.5 | 11.7 | 41 | 41 |
| 22611D-20-20W | G1.1/4"× 11 | 8 | 05 | 21 | 6.3 | 22 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22612D-XX-XX. |
|||||||
