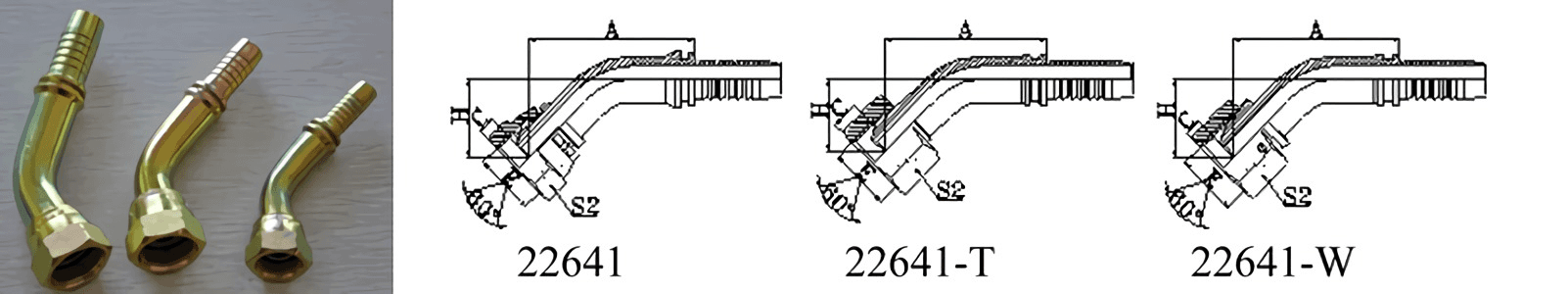

| PART NUMBER | OD | DN | DASH | A | C | H | S2 | |
| 22641-04-04 | G1/4"× 19 | 6 | 04 | 40 | 5.5 | 21 | 19 | |
| 22641-06-04 | G3/8"× 19 | 6 | 04 | 43.2 | 6.3 | 21 | 22 | |
| 22641-06-05 | G3/8"× 19 | 8 | 05 | 45.3 | 6.3 | 22 | 22 | |
| 22641-06-06 | G3/8"× 19 | 10 | 06 | 47 | 6.3 | 24 | 22 | |
| 22641-08-06T | G1/2"× 14 | 10 | 06 | 48.1 | 7..5 | 23.9 | 27 | |
| 22641-08-08 | G1/2"× 14 | 12 | 08 | 59.50 | 7.5 | 27 | 27 | |
| 22641-10-08 | G5/8"× 14 | 12 | 08 | 61.4 | 9.5 | 26.5 | 30 | |
| 22641-10-10 | G5/8"× 14 | 16 | 10 | 63 | 9.5 | 29 | 30 | |
| 22641-12-08T | G3/4"× 14 | 12 | 08 | 61.8 | 10.9 | 26.9 | 32 | |
| 22641-12-10 | G3/4"× 14 | 16 | 10 | 63 | 10.9 | 26.9 | 32 | |
| 22641-12-12 | G3/4"× 14 | 20 | 12 | 75.5 | 10.90 | 32 | 32 | |
| 22641-16-12T | G1"× 11 | 20 | 12 | 80.8 | 11.7 | 33.4 | 41 | |
| 22641-16-16 | G1"× 11 | 25 | 16 | 86 | 11.7 | 34 | 41 | |
| 22641-20-16T | G1.1/4"× 11 | 25 | 16 | 85.3 | 11 | 31.1 | 50 | |
| 22641-20-20W | G1.1./4"× 11 | 32 | 20 | 98.8 | 11 | 38 | 50 | |
| 22641-24-24W | G1.1/2"× 11 | 40 | 24 | 116.8 | 13 | 45.5 | 55 | |
| 22641-32-32W | G2"× 11 | 50 | 32 | 135.7 | 16 | 52.7 | 70 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22642-XX-XX. |
||||||||
