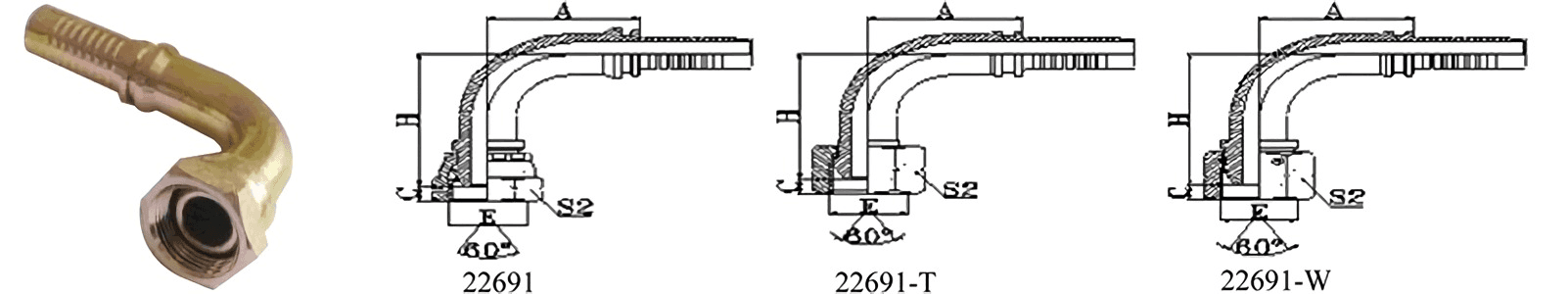

homeProductsBritish FittingsBSP 60°Cone Seal Fitting22691

22691

22691
PART NUMBER OD DN DASH A C H S2
22691-02-03 G1/8"× 28 5 03 26.5 5.5 31.5 14
22691-02-04 G1/8"× 28 6 04 27.5 5.5 35.5 14
22691-04-03 G1/4"× 19 5 03 26.5 5.5 33.5 19
22691-04-04 G1/4"× 19 6 04 27.5 5.5 37 19
22691-04-05 G1/4"× 19 8 05 31 5.5 41.5 19
22691-04-06 G1/4"× 19 10 06 30 5.5 36.5 19
22691-06-04 G3/8"× 19 6 04 27.5 6.3 39 22
22691-06-05 G3/8"× 19 8 05 31 6.3 43.5 22
22691-06-06 G3/8"× 19 10 06 33 6.3 44.5 22
22691-08-06T G1/2"× 14 10 06 35.3 7 43.3 27
22691-08-08 G1/2"× 14 12 08 42.5 7.5 53 27
22691-08-10 G1/2"× 14 16 10 56.5 7.5 55.5 27
22691-10-08 G5/8"× 14 12 08 42.5 9.5 53.5 30
22691-10-10 G5/8"× 14 16 10 48.5 9.5 58 30
22691-12-08T G3/4"× 14 12 08 41 10.9 52.1 32
22691-12-10 G3/4"×14 16 10 48.5 10.9 58 32
22691-12-12 G3/4"× 14 20 12 50.5 10.9 66 32
22691-16-12T G1"× 11 20 12 65.5 11.7 68.3 41
22691-16-14 G1"× 11 22 14 71.2 11.7 69.3 41
22691-16-16 G1"× 11 25 16 66 11.7 78.5 41
22691-20-16T G1.1/4"× 11 25 16 78 11 69.5 50
22691-20-20W G1.1/4"× 11 32 20 91.5 11 84.3 50
22691-24-24W G1.1/2"× 11 40 24 109.4 13 103 55
22691-32-32W G2"× 11 50 32 131.8 16 123.3 70
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 22692-XX-XX.
