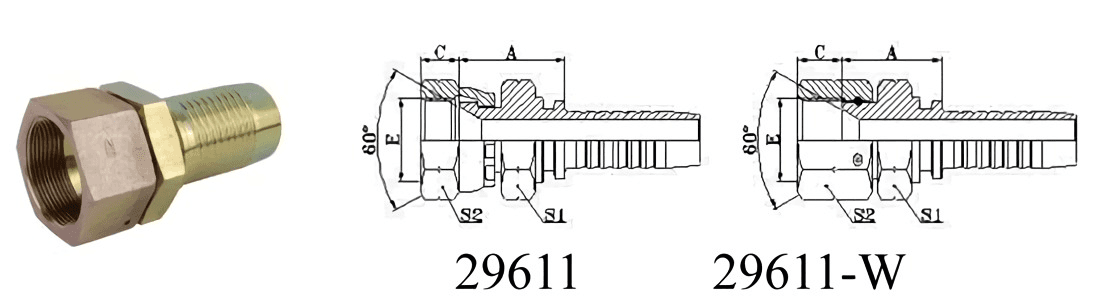

| PART NUMBER | E | DN | DASH | A | C | S1 | S2 | |
| 29611-02-03 | G1/8" × 28 | 5 | 03 | 20 | 7 | 14 | 14 | |
| 29611-04-04 | G1/4" × 19 | 6 | 04 | 21 | 8 | 19 | 19 | |
| 29611-04-05 | G1/4" × 19 | 8 | 05 | 21 | 8 | 19 | 19 | |
| 29611-06-04 | G3/8" × 19 | 6 | 04 | 23 | 9 | 22 | 22 | |
| 29611-06-06 | G3/8" × 19 | 10 | 06 | 23 | 9 | 22 | 22 | |
| 29611-08-06 | G1/2" × 14 | 10 | 06 | 28 | 12 | 27 | 27 | |
| 29611-08-08 | G1/2" × 14 | 12 | 08 | 26.5 | 12 | 27 | 27 | |
| 29611-10-10 | G5/8" × 14 | 16 | 10 | 30.5 | 11.5 | 30 | 30 | |
| 29611-12-10 | G3/4" × 14 | 16 | 10 | 30 | 13.5 | 32 | 32 | |
| 29611-12-12 | G3/4" × 14 | 20 | 12 | 30.5 | 13.5 | 32 | 32 | |
| 29611-16-16 | G1" × 11 | 25 | 16 | 32 | 16 | 41 | 41 | |
| 29611-20-20W | G1.1/4" × 11 | 32 | 20 | 43 | 18.5 | 504 | 50 | |
| 29611-24-24W | G1.1/2" × 11 | 40 | 24 | 43.5 | 19 | 55 | 55 | |
| 29611-32-32W | G2" × 11 | 50 | 32 | 46.5 | 23 | 70 | 70 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 29612-XX-X. |
||||||||
