10311

10311

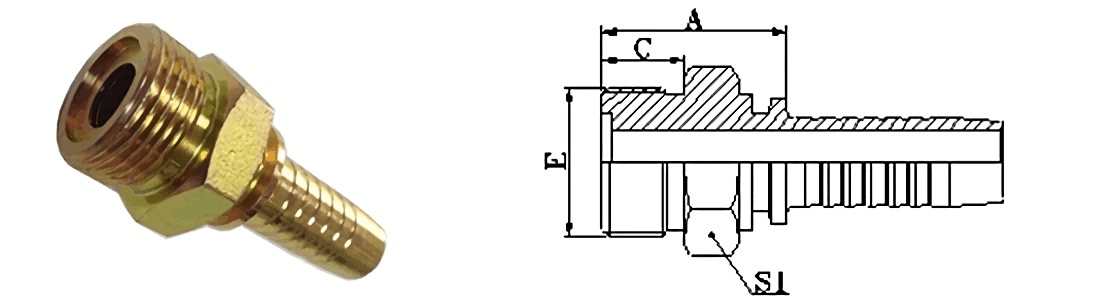

PART Number THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
10311-12-04 M12 × 1.25 6 04 22.2 10 14
10311-14-04 M14 × 1.5 6 04 23.5 11 14
10311-16-04 M16 × 1.5 6 04 23.5 11 17
10311-16-05 M16 × 1.5 8 05 23.5 11 17
10311-16-06 M16 × 1.5 10 06 23.5 11 17
10311-18-06 M18 × 1.5 10 06 23.5 11 19
10311-22-05 M22 × 1.5 8 05 27 12 24
10311-22-06 M22 × 1.5 10 06 26 12 24
10311-22-08 M22 × 1.5 12 08 26.5 12 24
10311-27-10 M27 × 1.5 16 10 31.5 13 30
10311-30-12 M30 × 1.5 20 12 33.5 14 32
10311-36-12 M36 × 2 20 12 35.5 16 38
10311-36-14 M36 × 2 22 14 35.5 16 38
10311-39-16 M39 × 2 25 16 39 16 41
10311-45-20 M45 × 2 32 20 44.5 50 46
10311-52-24 M52 × 2 40 24 47.5 22 55
10311-64-32 M64 × 2 50 32 52.5 27 65
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 10312-XX-XX.
