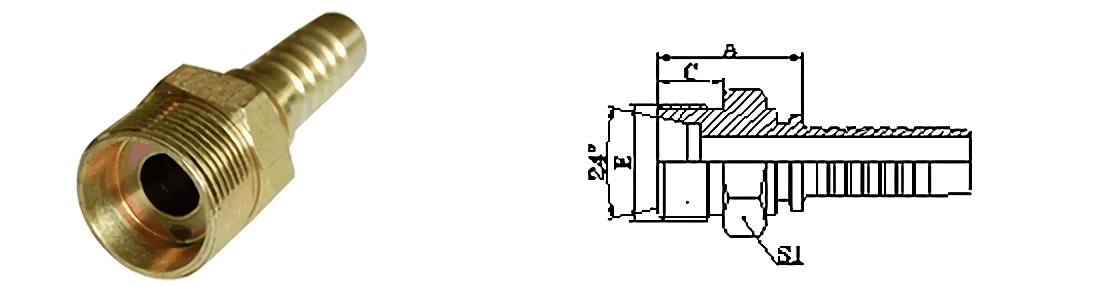

| PART Number | THREAD E | HOSE BORE | OD | DIMENSIONS | |||
| DN | DASH | A | C | S1 | |||
| 10511-14-04 | M14 × 1.5 | 6 | 04 | 6 | 24 | 12 | 14 |
| 10511-16-04 | M16 × 1.5 | 6 | 04 | 8 | 24.5 | 12 | 17 |
| 10511-18-04 | M18 × 1.5 | 6 | 04 | 10 | 25 | 12 | 19 |
| 10511-20-05 | M20 × 1.5 | 8 | 05 | 12 | 26 | 12 | 22 |
| 10511-20-06 | M20 × 1.5 | 10 | 06 | 12 | 26 | 12 | 22 |
| 10511-22-05 | M22 × 1.5 | 8 | 05 | 14 | 28.5 | 14 | 24 |
| 10511-22-06 | M22 × 1.5 | 10 | 06 | 14 | 28.5 | 14 | 24 |
| 10511-22-08 | M22 × 1.5 | 12 | 08 | 14 | 29 | 14 | 24 |
| 10511-24-08 | M24 × 1.5 | 12 | 08 | 16 | 30 | 14 | 27 |
| 10511-30-10 | M30 × 2 | 16 | 10 | 20 | 35.5 | 16 | 32 |
| 10511-30-12 | M30 × 2 | 20 | 12 | 20 | 35.5 | 16 | 32 |
| 10511-36-12 | M36 × 2 | 20 | 12 | 25 | 38.5 | 18 | 38 |
| 10511-36-16 | M36 × 2 | 25 | 16 | 25 | 40 | 18 | 38 |
| 10511-42-16 | M42 × 2 | 25 | 16 | 30 | 43 | 20 | 46 |
| 10511-42-20 | M42 × 2 | 32 | 20 | 30 | 44 | 20 | 46 |
| 10511-52-20 | M52 × 2 | 32 | 20 | 38 | 48 | 22 | 55 |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTING SERIES NUMBER IS 10512-XX-XX. |
|||||||
