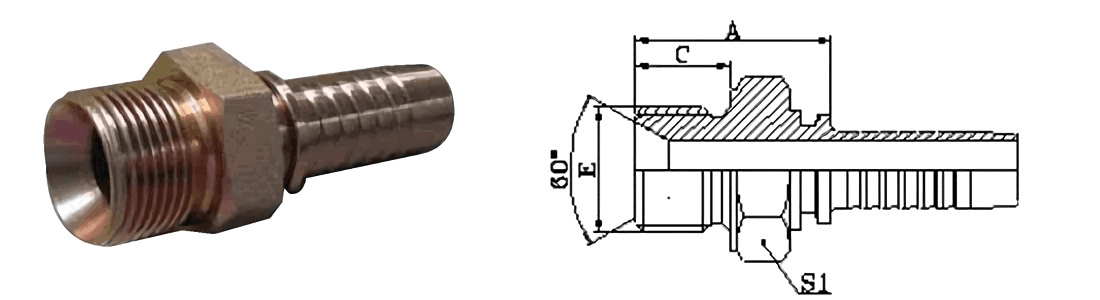

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | S1 | ||||
| 10611-14-04 | M14×1.5 | 6 | 04 | 23.5 | 11 | 19 | ||
| 10611-14-06 | M14×1.5 | 10 | 06 | 25 | 11 | 19 | ||
| 10611-16-04 | M16×1.5 | 6 | 04 | 27.5 | 12 | 22 | ||
| 10611-16-05 | M16×1.5 | 8 | 05 | 27.5 | 12 | 22 | ||
| 10611-18-06 | M18×1.5 | 10 | 06 | 29.5 | 12 | 24 | ||
| 10611-22-06 | M22×1.5 | 10 | 06 | 30.5 | 14 | 27 | ||
| 10611-22-08 | M22×1.5 | 12 | 08 | 31 | 14 | 27 | ||
| 10611-24-10 | M24×1.5 | 16 | 10 | 35 | 14 | 30 | ||
| 10611-26-10 | M26×1.5 | 16 | 10 | 35 | 16 | 32 | ||
| 10611-27-10D | M27×1.5 | 16 | 10 | 35 | 16 | 32 | ||
| 10611-27-10 | M27×1.5 | 16 | 10 | 37 | 18 | 32 | ||
| 10611-30-12D | M30×2 | 20 | 12 | 38 | 18 | 36 | ||
| 10611-30-12 | M30×2 | 20 | 12 | 38 | 18 | 36 | ||
| 10611-33-16 | M33×2 | 25 | 16 | 43 | 20 | 46 | ||
| 10611-42-20 | M42×2 | 32 | 20 | 46 | 20 | 50 | ||
| 10611-45-20 | M45×2 | 32 | 20 | 46 | 20 | 55 | ||
| 10611-48-24 | M48×2 | 40 | 24 | 46 | 20 | 55 | ||
| 10611-52-24 | M52×2 | 40 | 24 | 46 | 20 | 60 | ||
| Note: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 10612-XX-XX. |
||||||||
