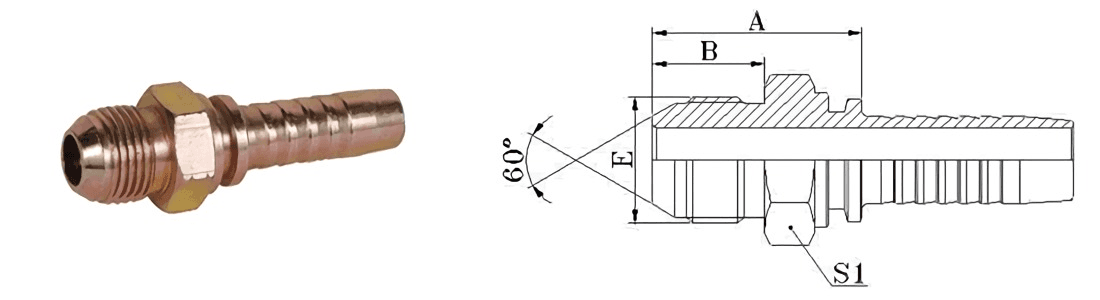

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | B | S1 | ||||
| 18611-14-04 | M14 × 1.5 | 6 | 04 | 29.5 | 17 | 17 | ||
| 18611-16-04 | M16 × 1.5 | 6 | 04 | 30.5 | 18 | 17 | ||
| 18611-16-06 | M16 × 1.5 | 10 | 06 | 30.5 | 18 | 17 | ||
| 18611-18-06 | M18 × 1.5 | 10 | 06 | 30.5 | 18 | 19 | ||
| 18611-20-08 | M20 × 1.5 | 12 | 08 | 35 | 20 | 22 | ||
| 18611-22-08 | M22 × 1.5 | 12 | 08 | 35.5 | 20 | 24 | ||
| 18611-24-10 | M24 × 1.5 | 16 | 10 | 39.5 | 21.5 | 27 | ||
| 18611-30-12 | M30 × 1.5 | 20 | 12 | 45.5 | 26 | 32 | ||
| 18611-33-16 | M33 × 1.5 | 25 | 16 | 50.5 | 30 | 36 | ||
| 18611-36-20 | M36 × 1.5 | 32 | 20 | 56.5 | 33 | 38 | ||
| 18611-42-24 | M42 × 1.5 | 40 | 24 | 59.5 | 36 | 46 | ||
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 18612-XX-XX. |
||||||||
