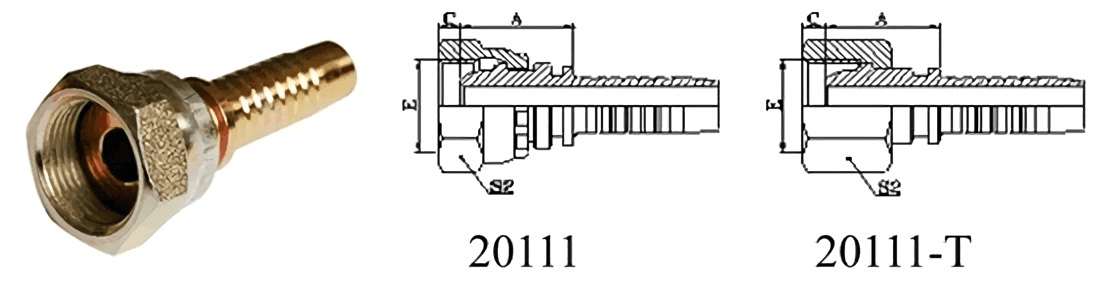

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | S2 | ||||
| 20111-10-03 | M10 × 1 | 5 | 03 | 18 | 2.5 | 14 | ||
| 20111-10-04 | M10 × 1 | 6 | 04 | 18 | 2.5 | 14 | ||
| 20111-12-04 | M12 × 1.5 | 6 | 04 | 18.5 | 4 | 17 | ||
| 20111-12-05 | M12 × 1.5 | 8 | 05 | 18.5 | 4 | 17 | ||
| 20111-14-04 | M14 × 1.5 | 6 | 04 | 20 | 4.5 | 19 | ||
| 20111-14-05 | M14 × 1.5 | 8 | 05 | 19.5 | 4.5 | 19 | ||
| 20111-16-04 | M16 × 1.5 | 6 | 04 | 20.5 | 4.5 | 22 | ||
| 20111-16-05 | M16 × 1.5 | 8 | 05 | 20.5 | 4.5 | 22 | ||
| 20111-16-06 | M16 × 1.5 | 10 | 06 | 20 | 4.5 | 22 | ||
| 20111-18-05T | M18 × 1.5 | 8 | 05 | 21.5 | 4 | 24 | ||
| 20111-18-06 | M18 × 1.5 | 10 | 06 | 22.5 | 4 | 24 | ||
| 20111-18-08 | M18 × 1.5 | 12 | 08 | 22 | 4 | 24 | ||
| 20111-20-06T | M20 × 1.5 | 10 | 06 | 23.5 | 5.5 | 24 | ||
| 20111-20-08 | M20 × 1.5 | 12 | 08 | 23 | 5.5 | 27 | ||
| 20111-22-06T | M22 × 1.5 | 10 | 06 | 23 | 5 | 27 | ||
| 20111-22-08 | M22 × 1.5 | 12 | 08 | 24.5 | 5 | 27 | ||
| 20111-22-10 | M22 × 1.5 | 16 | 10 | 24.5 | 5 | 27 | ||
| 20111-24-08T | M24 × 1.5 | 12 | 08 | 22 | 5.5 | 30 | ||
| 20111-24-10 | M24 × 1.5 | 16 | 10 | 26 | 5 | 30 | ||
| 20111-27-08DT | M27 × 1.5 | 12 | 08 | 23 | 5.5 | 32 | ||
| 20111-27-10DT | M27 × 1.5 | 16 | 10 | 26 | 5.5 | 32 | ||
| 20111-27-12D | M27 × 1.5 | 20 | 12 | 26 | 5.5 | 32 | ||
| 20111-27-10T | M27 × 1.5 | 16 | 10 | 26 | 7 | 32 | ||
| 20111-30-12D | M30 × 1.5 | 20 | 12 | 26.5 | 6 | 36 | ||
| 20111-30-12 | M30 × 2 | 20 | 12 | 26 | 7 | 36 | ||
| 20111-36-12T | M36 × 1.5 | 20 | 12 | 26 | 7 | 41 | ||
| 20111-36-14T | M36 × 1.5 | 22 | 14 | 26 | 7 | 41 | ||
| 20111-39-14T | M39 × 1.5 | 22 | 14 | 28.5 | 7 | 46 | ||
| 20111-39-16T | M39 × 1.5 | 25 | 16 | 34 | 7 | 46 | ||
| 20111-42-16T | M42 × 1.5 | 25 | 16 | 30 | 8.5 | 50 | ||
| 20111-45-20T | M45 × 1.5 | 32 | 20 | 31.5 | 8.5 | 55 | ||
| 20111-52-20T | M52 × 1.5 | 32 | 20 | 33 | 9 | 60 | ||
| 20111-52-24T | M52 × 1.5 | 40 | 24 | 33 | 9 | 60 | ||
| 20111-64-32T | M64 × 1.5 | 50 | 32 | 35 | 14 | 75 | ||
| NOTE: 1 .FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSE, HOSE FITTINGS SERIES NUMBER IS 20112-XX-XX. |
||||||||
