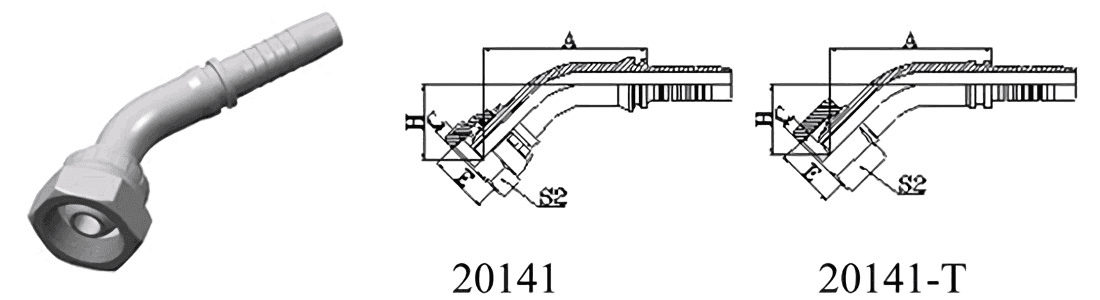

20141

20141
PART Number THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
20141-10-03 M10 × 1 5 03 41.1 2.5 20.7 14
20141-10-04 M10 × 1 6 04 43.2 2.5 21.5 14
20141-12-03 M12 × 1.5 5 03 40.9 4 21.2 17
20141-12-04 M12 × 1.5 9 04 43 4 22 17
20141-14-04 M14 × 1.5 6 04 43.4 4.5 21.3 19
20141-14-05 M14 × 1.5 8 05 45.5 4.5 22.2 19
20141-16-04 M16 × 1.5 6 04 44.7 4.5 23.2 22
20141-16-05 M16 × 1.5 8 05 45.8 4.5 22.5 22
20141-16-06 M16 × 1.5 10 06 47.4 4.5 24.1 22
20141-18-05T M18 × 1.5 8 05 46.8 4 22.6 24
20141-18-06 M18 × 1.5 10 06 48.5 4 24.2 24
20141-18-08 M18 × 1.5 12 08 52.2 4 25.7 24
20141-20-06T M20 × 1.5 10 06 48.2 5.5 23.9 27
20141-20-08 M20 × 1.5 12 08 62.1 5.5 27.2 27
20141-22-06T M22 × 1.5 10 06 58.4 5 25.7 27
20141-22-08 M22 × 1.5 12 08 62.1 5 27.2 27
20141-24-08T M24 × 1.5 12 08 61.1 5.5 26.1 30
20141-24-10 M24 × 1.5 16 10 75.4 5 29.6 30
20141-27-10DT M27 × 1.5 16 10 74.4 5.5 29.6 32
20141-27-10T M27 × 2 16 10 74.4 5.5 29.6 32
20141-30-12D M30 × 1.5 20 12 80.9 6 33.5 36
20141-30-12 M30 × 2 20 12 80.9 6 33.5 36
20141-36-14T M36 × 2 22 14 83 7 32.64 41
20141-39-16T M39 × 2 25 16 88.2 7 33.95 46
20141-45-20T M45 × 2 32 20 99.1 8.5 38.4 55
20141-52-24T M52 × 2 40 24 114.1 9 43.4 60
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPRIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20142-XX-XX.
