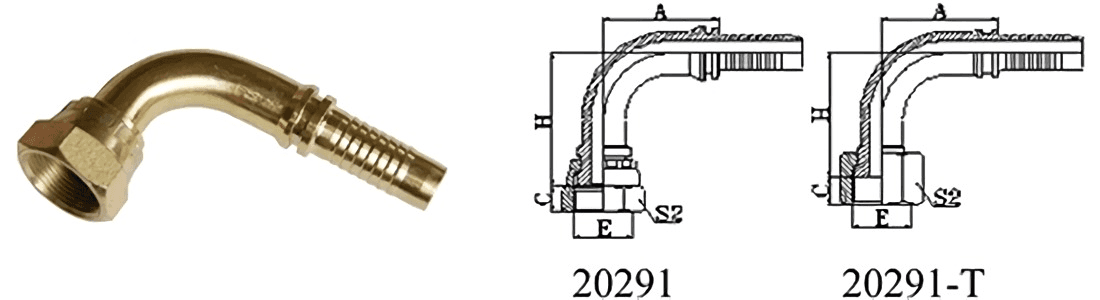

20291

20291
PART Number THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
20291-12-02 M12 × 1.25 4 02 26.5 8 30.5 17
20291-12-04 M12 × 1.25 6 04 30 8 33.5 17
20291-14-04 M14 × 1.5 6 04 27.5 8.5 34 19
20291-14-05 M14 × 1.5 8 05 33 8.5 37 19
20291-16-04 M16 × 1.5 6 04 30 8 35 22
20291-16-05 M16 × 1.5 8 05 31 8 39.5 22
20291-16-06T M16 × 1.5 10 06 35.3 8 40.3 22
20291-18-05T M18 × 1.5 8 05 33 8 39 24
20291-18-06 M18 × 1.5 10 06 33 8 42 24
20291-22-08 M22 × 1.5 12 08 42.5 10 49.5 27
20291-22-10 M22 × 1.5 16 10 57.5 10 53 27
20291-24-08T M24 × 1.5 12 08 41 11 45.5 30
20291-27-04T M27 × 1.5 6 04 30 10 35.5 32
20291-27-08T M27 × 1.5 12 08 41 10 46 32
20291-27-10T M27 × 1.5 16 10 48.5 10 51.5 32
20291-30-12 M30 × 1.5 20 12 50.5 11 63.5 36
20291-33-14 M33 × 2 22 14 71.2 13 65 41
20291-36-14T M36 × 2 22 14 57.5 13 64 41
20291-36-16 M36 × 2 25 16 66 13 76.5 41
20291-39-16T M39 × 2 25 16 66 13 72.5 46
20291-42-20W M42 × 2 32 20 91.5 15 80.5 50
20291-45-20T M45 × 2 32 20 75 15 85 55
20291-52-20T M52 × 2 32 20 91.5 17 78.5 60
20291-52-24T M52 × 2 40 24 89 17 97 60
20291-60-28T M60 × 2 45 28 119.9 20 106.5 70
20291-64-32T M64 × 2 50 32 130.95 23 113.3 75
NOTE:
1.FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20292-XX-XX.
