homeProductsMetric Fitting24°Cone O-ring Seal L.T.Fitting20411

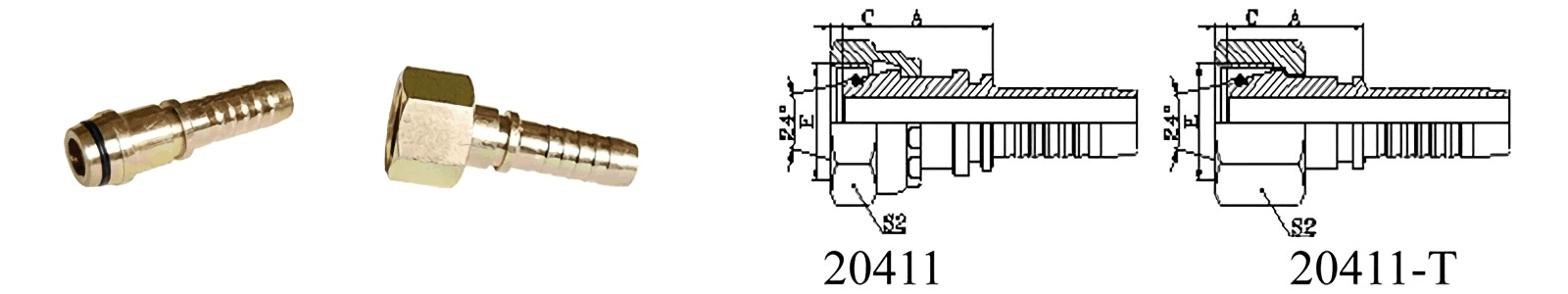

20411

20411
PART Number THREAD E HOSE BORE TUBE OD O-RING DIMENSIONES
DN DASH A C S2
20411-12-04 M12 × 1.5 6 04 6 O04.5×1.5 25 1 17
20411-14-04 M14 × 1.5 6 04 8 O06.5×1.5 26.5 2 19
20411-14-06 M14 × 1.5 10 06 8 O06.5×1.5 27.5 2 19
20411-16-04 M16 × 1.5 6 04 10 O08.0×1.5 27 2 22
20411-16-05 M16 × 1.5 8 05 10 O08.0×1.5 27 2 22
20411-16-06 M16 × 1.5 10 06 10 O08.0×1.5 28 2 22
20411-18-05T M18 × 1.5 8 05 12 O10.0×1.5 25.5 1.5 22
20411-18-06 M18 × 1.5 10 06 12 O10.0×1.5 29 2.5 24
20411-18-08 M18 × 1.5 12 08 12 O10.0×1.5 29.5 2.5 24
20411-22-05T M22 × 1.5 8 05 15 O12.0×2 26.5 3 27
20411-22-06T M22 × 1.5 10 06 15 O12.0×2 28.5 3 27
20411-22-08 M22 × 1.5 12 08 15 O12.0×2 32.5 2.5 27
20411-26-10 M26 × 1.5 16 10 18 O15.0×2 34.5 2.5 32
20411-26-12 M26 × 1.5 20 12 18 O15.0×2 34.5 2.5 32
20411-30-10T M30 × 2 16 10 22 O20.0×2 33 3.8 36
20411-31-12 M30 × 2 20 12 22 O20.0×2 36.5 4 36
20411-36-12T M36 × 2 20 12 28 O26.0×2 36 4.5 46
20411-36-14T M36 × 2 22 14 28 O26.0×2 36.5 4.5 46
20411-45-16T M45 × 2 25 16 35 O32.0×2 42 4 55
20411-45-20T M45 × 2 32 20 35 O32.0×2 43 4 55
20411-52-20T M52 × 2 32 20 42 O38.0×2 44.5 4 60
20411-52-24T M52 × 2 40 24 42 O38.0×2 44.5 4 60
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE FOR WITH SPIRAL HOSES, HOSE FITTING SERIES NUMBER IS 20412-XX-XX.
