homeProductsMetric Fitting24°Cone O-ring Seal L.T.Fitting20491

20491

20491

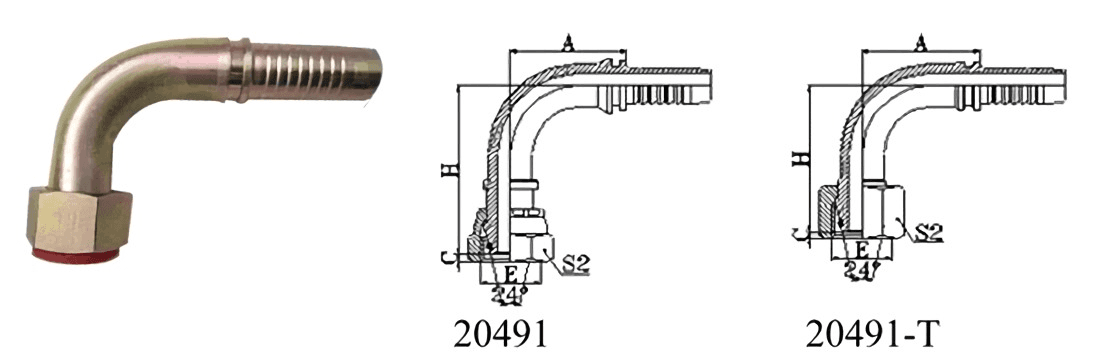

PART Number THREAD E HOSE BORE TUBE OD O-RING DIMENSIONS
DN DASH A C H S2
20491-12-03 M12 × 1.5 5 03 6 O04.5×1.5 25.6 1 34.5 17
20491-12-04 M12 × 1.5 6 04 6 O04.5×1.5 27.5 1 43 17
20491-14-04 M14 × 1.5 6 04 8 O06.5×1.5 27.5 2 44.5 19
20491-16-04 M16 × 1.5 68 04 10 O08.0×1.5 27.5 2 45 22
20491-16-05 M16 × 1.5 10 05 10 O08.0×1.5 31 2 49.5 22
20491-16-06 M16 × 1.5 8 06 10 O08.0×1.5 33 2 50.5 22
20491-18-05T M18 × 1.5 10 05 12 O10.0×1.5 31 1.5 43 22
20491-18-06 M18 × 1.5 10 06 12 O10.0×1.5 33 2.5 52.5 24
20491-22-06T M22 × 1.5 12 06 15 O12.0×2.0 33 3 47 27
20491-22-08 M22 × 1.5 12 08 15 O12.0×2.0 42.5 2.5 62.5 27
20491-26-08T M26 × 1.5 16 08 18 O15.0×2.0 42.5 2.1 54.5 32
20491-26-10 M26 × 1.5 20 10 18 O15.0×2.0 48.5 2.5 68 32
20491-26-12 M26 × 1.5 16 12 18 O15.0×2.0 50.5 2.5 76 32
20491-30-10T M30 × 2 16 10 22 O20.0×2.0 48.5 3.8 59.5 36
20491-30-12 M30 × 2 20 12 22 O20.0×2.0 50.5 4 78 36
20491-36-12T M36 × 2 20 12 28 O26.0×2.0 50.5 4.5 71 46
20491-36-14T M36 × 2 22 14 28 O26.0×2.5 4.5 46
20491-45-16T M45 × 2 25 16 35 O32.0×2.5 66 4 83 55
20491-45-20T M45 × 2 32 20 35 O32.0×2.5 75 4 95 55
20491-52-20T M52 × 2 32 20 42 O38.0×2.5 75 4 96.5 60
20491-52-24T M52 × 2 40 24 42 O38.0×2.5 89 4 108.5 60
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20492-XX-XX.
