homeProductsMetric Fitting24°Cone O-ring Seal H.T.Fitting20511

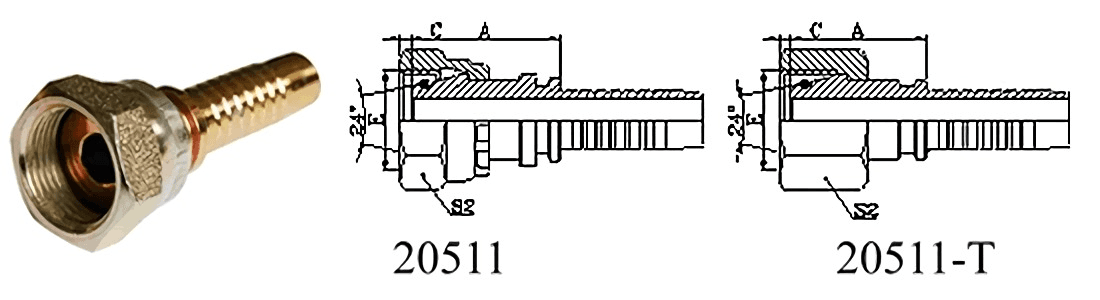

20511

20511
PART NUMBER THREAD E HOSE BORE TUBE.O.D O RING DIMENSIONS
DN DASH A C S1
20511-14-04 M14 × 1.5 6 04 6 O04.5×1.5 27.4 1.5 19
20511-16-04 M16 × 1.5 6 04 8 O06.5×1.5 27.5 1.5 22
20511-16-05 M16 × 1.5 8 05 8 O06.5×1.5 27.5 1.5 22
20511-18-04T M18 × 1.5 6 04 10 O08.0×1.5 26 1.5 22
20511-18-06 M18 × 1.5 10 06 10 O08.0×1.5 29.5 2 24
20511-20-06T M20 × 1.5 10 06 12 O10.0×1.5 27.5 2.5 24
20511-20-08 M20 × 1.5 12 08 12 O10.0×1.5 31.5 2.5 27
20511-22-06T M22 × 1.5 10 06 14 O11.0×2.0 28.5 3 27
20511-22-08 M22 × 1.5 12 08 14 O11.0×2.0 32.5 2.5 27
20511-24-06T M24 × 1.5 10 06 16 O13.0×2.0 27 3 30
20511-24-08T M24 × 1.5 12 08 16 O13.0×2.0 30 3 30
20511-30-10T M30 × 2 16 10 20 O16.3×2.4 33.5 2.5 36
20511-30-12 M30 × 2 20 12 20 O16.3×2.4 37 3 36
20511-36-12T M36 × 2 20 12 25 O20.3×2.4 37 3.2 46
20511-36-14T M36 × 2 22 14 25 O20.3×2.4 37 3.2 46
20511-42-12T M42 × 2 20 12 30 O25.3×2.4 37.5 3.9 50
20511-42-16T M42 × 2 25 16 30 O25.3×2.4 41 3.9 50
20511-52-20T M52 × 2 32 20 38 O33.3×2.4 44 4.5 60
20511-52-24T M52 × 2 40 24 38 O33.3×2.4 44 4.5 60
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. FOR USE WITH SPIRAIL HOSES, HOSE FITTING SERIES NUMBE IS 20512-XX-XX.
