homeProductsMetric Fitting24°Cone O-ring Seal H.T.Fitting20591

20591

20591

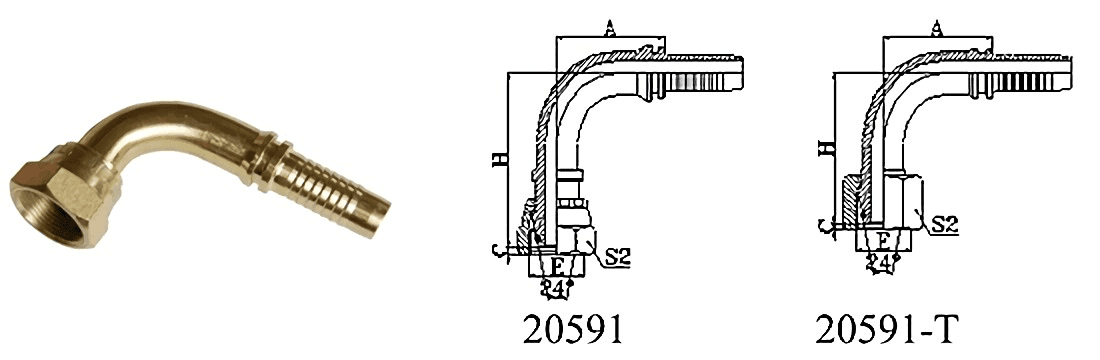

PART Number THREAD E HOSE BORE TUBE O.D O-RING DIMENSIONS
DN DASH A C H S2
20591-14-04 M16 × 1.5 6 04 6 O04.5×1.5 27.5 1.5 45.4 19
20591-16-04 M16 × 1.5 6 04 8 O06.5×1.5 27.5 1.5 45.5 22
20591-16-05 M16 × 1.5 8 05 8 O06.5×1.5 31 1.5 50 22
20591-18-05T M18 × 1.5 8 05 10 O08.0×1.5 31 1.5 43.5 22
20591-18-06 M18 × 1.5 10 06 10 O08.0×1.5 33 2 53 24
20591-20-06T M20 × 1.5 10 06 12 O10.0×1.5 33 2.5 46.5 24
20591-20-08 M20 × 1.5 12 08 12 O10.0×1.5 42.5 2.5 61.5 27
20591-22-06T M22 × 1.5 10 06 14 O11.0×2.0 33 3 47 27
20591-22-08 M22 × 1.5 12 08 14 O11.0×2.0 42.5 2.5 62.5 27
20591-24-08T M24 × 1.5 12 08 16 O13.0×2.0 42.5 3 55 30
20591-24-10 M24 × 1.5 16 10 16 O13.0×2.0 48.5 2.5 68 30
20591-30-10T M30 × 2 16 10 20 O16.3×2.4 48.5 2.5 60.5 36
20591-30-12 M30 × 2 20 12 20 O16.3×2.4 50.5 3 78.5 36
20591-36-12T M36 × 2 20 12 25 O20.3×2.4 50.5 3.2 72 46
20591-36-14T M36 × 2 22 14 25 O20.3×2.4 57.5 3.2 74 46
20591-42-16T M42 × 2 25 16 30 O25.3×2.4 66 3.9 83 50
20591-52-20T M52 × 2 32 20 38 O33.3×2.4 75 4.5 95.5 60
20591-52-24T M52 × 2 40 24 38 O33.3×2.4 93 4.5 107.5 60
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20592-XX-XX.
