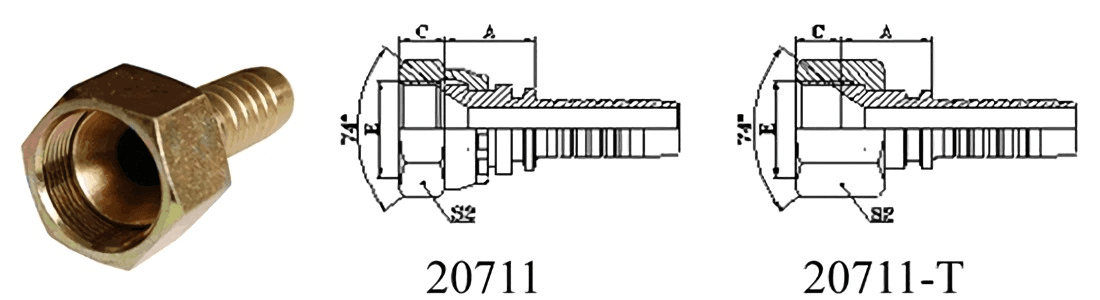

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | S2 | ||||
| 20711-10-02 | M10×1 | 4 | 02 | 14 | 7.5 | 14 | ||
| 20711-12-03C | M12×1.25 | 5 | 03 | 14 | 9 | 17 | ||
| 20711-12-03 | M12×1.5 | 5 | 03 | 14 | 10 | 17 | ||
| 20711-12-04 | M12×1.5 | 6 | 04 | 15 | 10 | 17 | ||
| 20711-14-04 | M14×1.5 | 6 | 04 | 16 | 8.5 | 19 | ||
| 20711-14-05 | M14×1.5 | 8 | 05 | 15.5 | 8.5 | 19 | ||
| 20711-14-06 | M14×1.5 | 10 | 06 | 15.5 | 8.5 | 19 | ||
| 20711-16-04 | M16×1.5 | 6 | 04 | 16.5 | 8 | 22 | ||
| 20711-16-05 | M16×1.5 | 8 | 05 | 17 | 8 | 22 | ||
| 20711-16-06 | M16×1.5 | 10 | 06 | 16 | 8 | 22 | ||
| 20711-18-05T | M18×1.5 | 8 | 05 | 16 | 8 | 22 | ||
| 20711-18-06 | M18×1.5 | 10 | 06 | 18.5 | 10 | 24 | ||
| 20711-20-06T | M20×1.5 | 10 | 06 | 16 | 10 | 24 | ||
| 20711-20-08 | M20×1.5 | 12 | 08 | 18.5 | 10 | 27 | ||
| 20711-22-06T | M22×1.5 | 10 | 06 | 16 | 10 | 27 | ||
| 20711-22-08 | M22×1.5 | 12 | 08 | 19.5 | 10 | 27 | ||
| 20711-22-10 | M22×1.5 | 16 | 10 | 19 | 10 | 27 | ||
| 20711-24-08T | M24×1.5 | 12 | 08 | 16.5 | 11 | 30 | ||
| 20711-27-08T | M27×1.5 | 12 | 08 | 18.5 | 11 | 32 | ||
| 20711-27-10T | M27×1.5 | 16 | 10 | 21 | 11 | 32 | ||
| 20711-27-12 | M27×1.5 | 20 | 12 | 21.5 | 11 | 32 | ||
| 20711-30-10T | M30×1.5 | 16 | 10 | 18 | 11 | 36 | ||
| 20711-30-12 | M30×1.5 | 20 | 12 | 22 | 11 | 36 | ||
| 20711-33-10T | M33×2 | 16 | 10 | 19.5 | 13 | 41 | ||
| 20711-33-12T | M33×2 | 20 | 12 | 20 | 13 | 41 | ||
| 20711-33-14 | M33×2 | 22 | 14 | 21.5 | 13 | 41 | ||
| 20711-36-12T | M36×2 | 20 | 12 | 20 | 14 | 41 | ||
| 20711-36-14T | M36×2 | 22 | 14 | 24 | 14 | 41 | ||
| 20711-36-16 | M36×2 | 25 | 16 | 23 | 14 | 41 | ||
| 20711-39-16T | M39×2 | 25 | 16 | 25 | 14 | 46 | ||
| 20711-42-16T | M42×2 | 25 | 16 | 23.5 | 15 | 50 | ||
| 20711-42-20W | M42×2 | 32 | 20 | 24.5 | 15 | 50 | ||
| 20711-45-20T | M45×2 | 32 | 20 | 27 | 15 | 55 | ||
| 20711-52-24T | M52×2 | 40 | 24 | 27 | 17 | 60 | ||
| NOTE: 1.FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20712-XX-XX. |
||||||||
