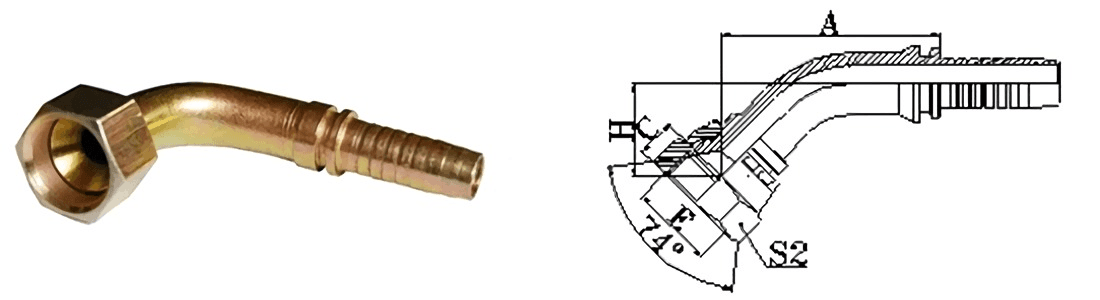

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S2 | |||
| 20741-14-04 | M14 × 1.5 | 6 | 04 | 38 | 8.5 | 19 | 19 | |
| 20741-16-05 | M16 × 1.5 | 8 | 05 | 42.3 | 8 | 20.7 | 22 | |
| 20741-18-06 | M18 × 1.5 | 10 | 06 | 45.5 | 10 | 22 | 24 | |
| 20741-22-08 | M22 × 1.5 | 12 | 08 | 57.5 | 10 | 24.5 | 27 | |
| 20741-27-10 | M27 × 1.5 | 16 | 10 | 60 | 11 | 26.5 | 32 | |
| 20741-30-12 | M30 × 1.5 | 20 | 12 | 74 | 11 | 30 | 36 | |
| 20741-33-12 | M33 × 2 | 20 | 12 | 77.4 | 13 | 30 | 41 | |
| 20741-33-16 | M33 × 2 | 25 | 16 | 85 | 13 | 30.8 | 41 | |
| 20741-36-14 | M36 × 2 | 22 | 14 | 79.8 | 14 | 29.6 | 4 | |
| 20741-36-16 | M36 × 2 | 25 | 16 | 85.7 | 14 | 31.5 | 41 | |
| 20741-39-16 | M39 × 2 | 25 | 16 | 85 | 14 | 33 | 46 | |
| 20741-45-20W | M45 × 2 | 32 | 20 | 97 | 15 | 36.2 | 55 | |
| 20741-52-24W | M52 × 2 | 40 | 24 | 115.3 | 17 | 40.9 | 60 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 20742-XX-XX. |
||||||||
