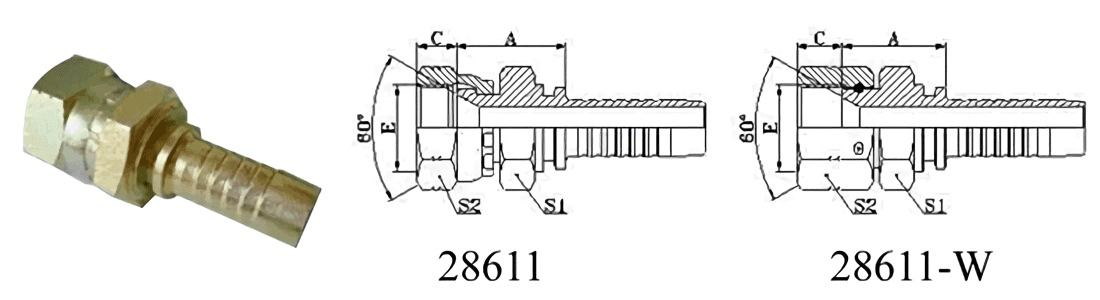

| PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | B | S1 | S2 | |||
| 28611-12-14 | M12 × 1.5 | 6 | 04 | 20 | 9 | 17 | 17 | |
| 28611-14-04W | M14 × 1.5 | 6 | 04 | 23 | 10.5 | 19 | 19 | |
| 28611-14-06 | M14 × 1.5 | 10 | 06 | 21 | 10.5 | 19 | 19 | |
| 28611-16-04 | M16 × 1.5 | 6 | 04 | 24 | 10 | 22 | 22 | |
| 28611-16-05 | M16 × 1.5 | 8 | 05 | 24 | 10 | 22 | 22 | |
| 28611-16-06 | M16 × 1.5 | 10 | 06 | 24 | 10 | 22 | 22 | |
| 28611-18-06 | M18 × 1.5 | 10 | 06 | 24 | 11.5 | 24 | 24 | |
| 28611-18-08 | M18 × 1.5 | 12 | 08 | 24.5 | 11.5 | 24 | 24 | |
| 28611-20-08 | M20 × 1.5 | 12 | 08 | 28.5 | 12 | 27 | 27 | |
| 28611-22-08 | M22 × 1.5 | 12 | 08 | 25.5 | 14 | 27 | 27 | |
| 28611-24-08 | M24 × 1.5 | 12 | 08 | 27.5 | 15 | 32 | 32 | |
| 28611-24-10 | M24 × 1.5 | 16 | 10 | 28 | 15 | 32 | 32 | |
| 28611-30-12 | M30 × 1.5 | 20 | 12 | 28.5 | 18.3 | 36 | 36 | |
| 28611-33-12 | M33 × 1.5 | 20 | 12 | 31 | 21.3 | 41 | 41 | |
| 28611-33-16 | M33 × 1.5 | 25 | 16 | 32 | 21.3 | 41 | 41 | |
| 28611-36-20 | M36 × 1.5 | 32 | 20 | 35.5 | 20 | 46 | 46 | |
| 28611-42-24W | M42 × 1.5 | 40 | 24 | 36 | 18.8 | 55 | 55 | |
| NOTE: 1. FOR USE WITH BRAIDED HOSES. 2. IF USE WITH SPIRAL HOSE, HOSE FITTINGS SERIES NUMBER IS 28612-XX-XX. |
||||||||
