homeProductsMetric FittingStandpipe Fitting50011

50011

50011

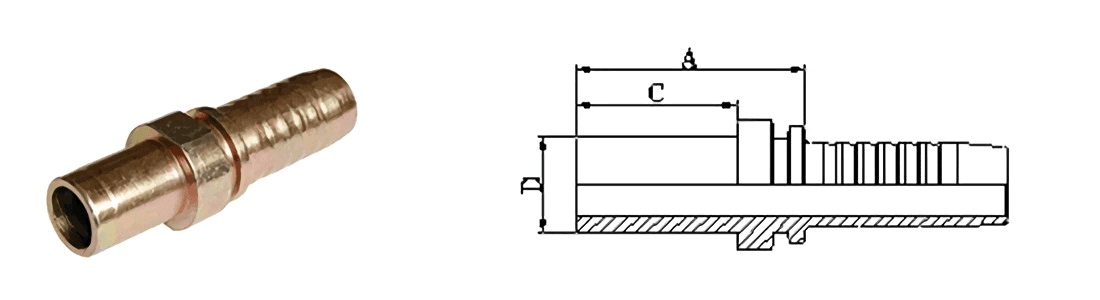

PART Number TUBE 0D HOSE BORE DIMENSIONS NOTE
DN DASH A C LIGHT
50011-06-03 6 5 03 28.5 22
50011-06-04 6 6 04 29 22
50011-10-05 10 8 05 31 23
50011-10-06 10 10 06 32 23
50011-12-06 12 10 06 32.5 23
50011-12-08 12 12 08 33 23
50011-15-06 15 10 06 35.5 25
50011-15-08 15 12 08 35.5 25
50011-18-08 18 12 08 36.5 26
50011-18-10 18 16 10 41 26
50011-22-10 22 16 10 44 28
50011-22-12 22 20 12 44 28
50011-22-16 22 25 16 46 28
50011-28-16 28 25 16 47 30
50011-35-20 35 32 20 56 36
50011-42-24 42 40 24 62 40
50011-08-04 8 6 04 31 24 WEIGHT
50011-08-05 8 8 05 33 24
50011-08-06 8 10 06 33 24
50011-10-04 10 6 04 33 26
50011-12-04 12 6 04 34.5 26
50011-12-05 12 8 05 35.5 26
50011-14-06 14 10 06 39.5 29
50011-14-08 14 12 08 40 29
50011-14-12 14 20 12 45.5 29
50011-16-08 16 12 08 40.5 30
50011-16-10 16 16 10 45.5 30
50011-20-10 20 16 10 52 36
50011-20-12 20 20 12 52.5 36
50011-25-12 25 20 12 56 40
50011-25-16 25 25 16 57 40
50011-30-16 30 25 16 63 44
50011-30-20 30 32 20 64 44
50011-38-16 38 25 16 69 50
50011-38-20 38 32 20 70 50
NOTE:
1. FOR USE WITH BRAIDED HOSES.
2.IF USE WITH SPIRAL HOSES, HOSE FITTINGS SERIES NUMBER IS 50012-XX-XX.
